E3042
ORBITA
| Color: | |
|---|---|
| SKU: | |
| Availability: | |
| Quantity: | |
1.Brief Introduction

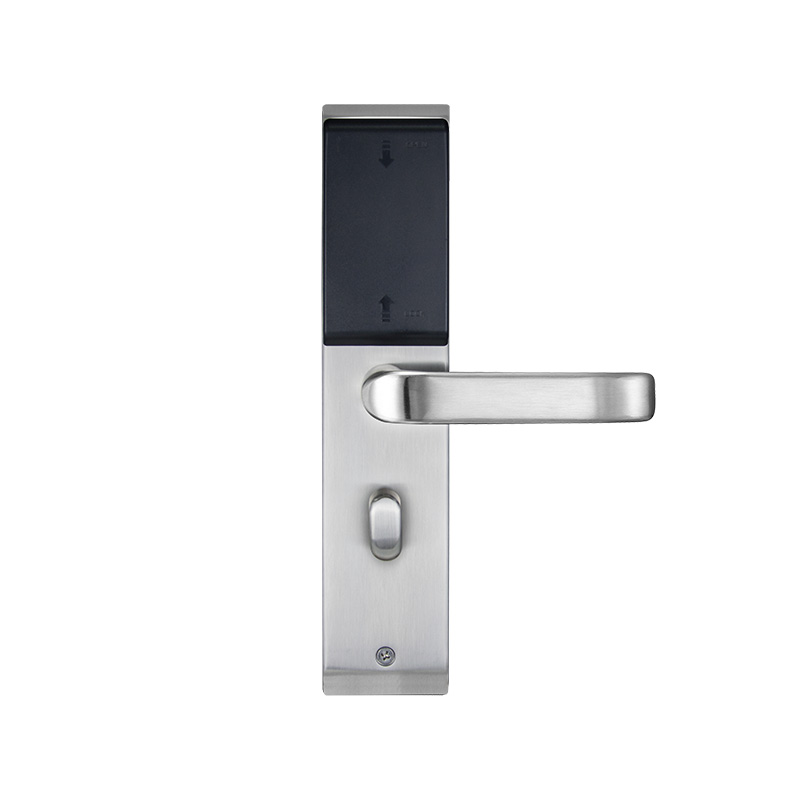

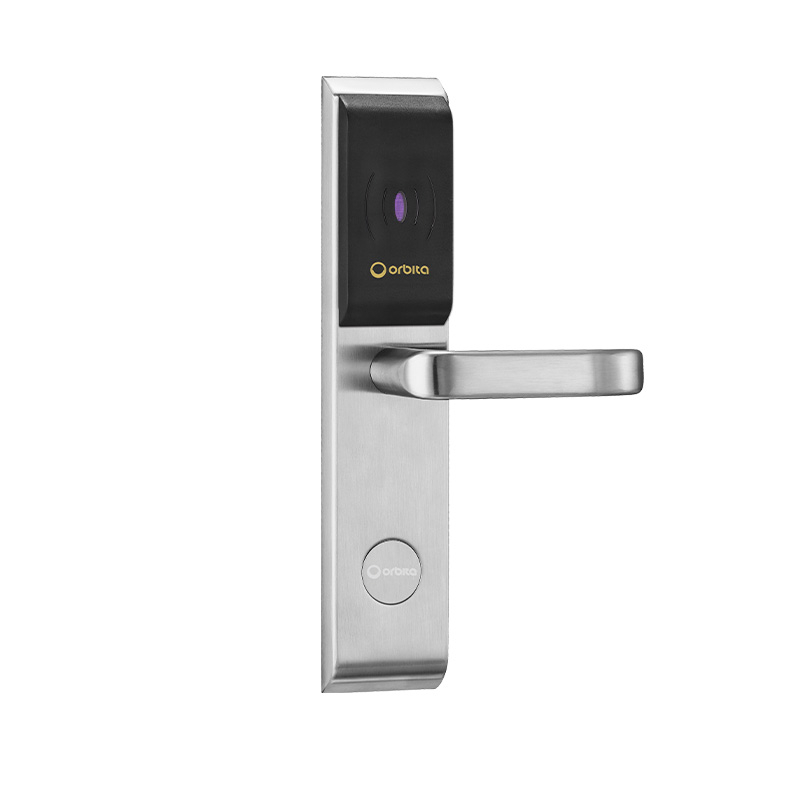

The E3042 is an upgraded commercial-grade hotel smart door lock, evolved from the proven classic E3041 model with targeted performance enhancements. E3041 Door Lock can support other types of hotel management software, Fidelio/Opera, and Orbita wireless portable programmer for door lock setting, data collection and download functions. Certified by European CE and U.S. UL-10C, our products adopt the American standard 5-point tongue lock body with an anti-shim plunger design and an abnormal latch bolt alert for double security, stability and reliability. Functions such as door left open warning, low battery voltage warning, channel function and all-in-one function are available.
2. 6 Core Advantages of E3042 Hotel Door Lock
Advantage 1 : Superior Durability: 304 Stainless Steel Construction, Strong Impact, Corrosion & Wear Resistance.
Advantage 2: All-Weather Adaptability: IP54 Waterproof, Moisture Proof & Fire Retardant, Operates in -20℃~60℃ Extreme Temperatures.
Advantage 3: Smart & Flexible Unlocking: Supports Bluetooth Mobile Key + Mifare 1 RFID Card, Dual Unlocking Modes for Hotel Management & Guest Convenience.
Advantage 4: Reliable Power Supply: DC6V Wired Power or 4 AA Alkaline Batteries, Built-in Low Voltage Alarm (<4.8V) to Prevent Lockouts.
Advantage 5: Comprehensive Security Management: Stores up to 1680 Unlocking Records, Full Traceability for Hotel Security Audits.
Advantage 6: Wide Compatibility: Fits 32-70mm Standard Door Thickness, Compatible with ORBITA Hotel Lock Management System, Easy to Install & Maintain.
3. Complete Technical Specifications
Product Model | E3042 |
Main Material | 304 Stainless Steel, Moisture Proof, Fire Retardant |
Operating Voltage | DC6V or 4 AA Alkaline Batteries |
Low Voltage Alarm | ＜4.8V |
Operating Temperature | -20℃~60℃ |
Unlocking Record Capacity | 1680 PCS |
Applicable Door Thickness | 32-70mm |
Compatible Keycard | Mifare 1 Card |
Product Size | L290mm x W60mm x H15mm |

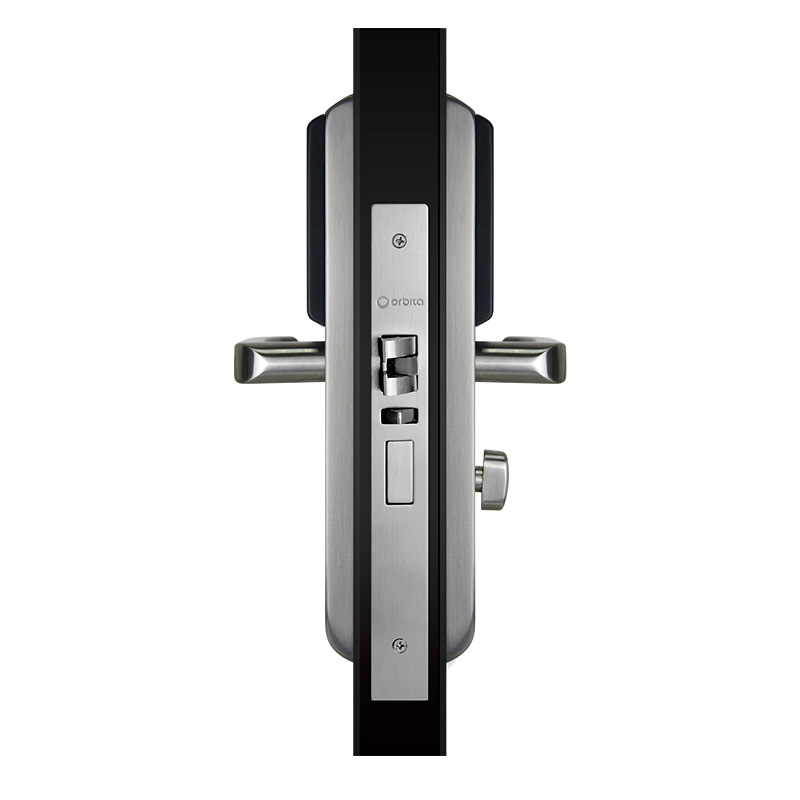

Mortise Model | M11 Standard Hotel Lock Mortise |
Certifications | UL Listed, CE Certified, IP54 Waterproof |

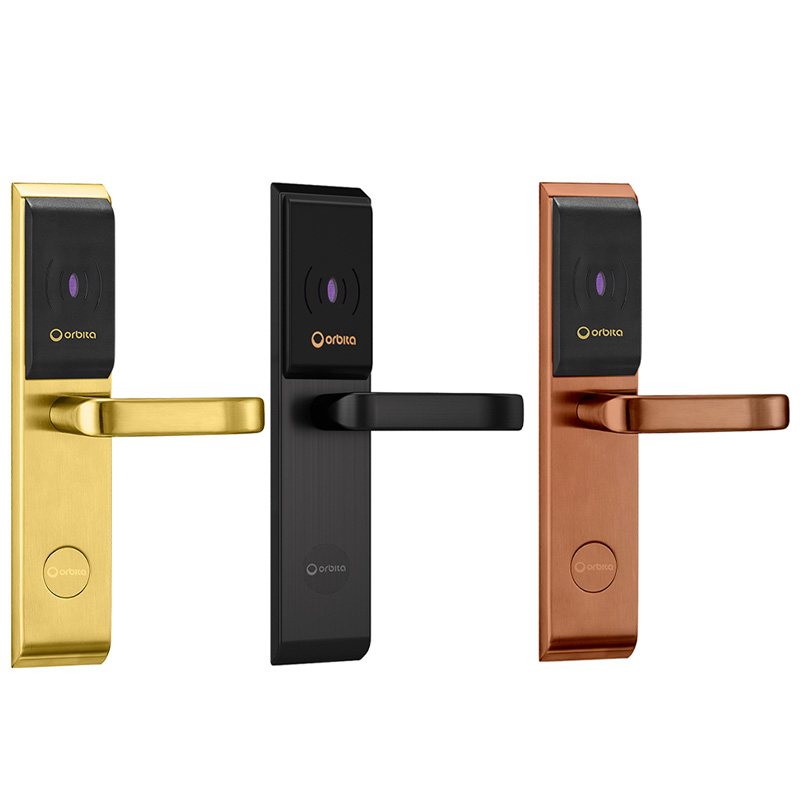

Available Finishes | Stainless Steel (SS), Gold, Black |
4.Product Dimensions & Installation Guide
Front Panel Dimensions | L290mm x W60mm x H15mm (L11.42" x W2.36" x H0.59") |
Mortise Dimensions | M11 Standard Hotel Lock Mortise, Detailed Dimensions Refer to Installation Drawing |
Applicable Door Type | Wooden Door, Metal Door, Fireproof Door, Suitable for Hotel Guest Rooms, Apartments, Offices |
Installation Notes | 1. Standard 22mm/24mm Door Hole Preparation Required; 2. Mortise Installation First, Then Front Panel Fixing; 3. Power Connection Test Before Final Installation; 4. Professional Installation Recommended for Commercial Projects |
5. Packaging & Shipping Information
Outer Carton Size | L360*D360*H365mm (L36cm*D36cm*H36.5cm) |
Quantity Per Carton | 6 PCS/Carton |
Packing Method | Each Lock is Individually Packaged in a Color Box, with Accessory Bag, User Manual, and Warranty Card Included; 6 Color Boxes Packed in One Master Carton |
Shipping Weight | Net Weight: 2.5KG/PC; Gross Weight: 18KG/Carton |
Lead Time | Sample Order: 3-5 Working Days; Bulk Order: 15-20 Working Days |
6.Trust & Quality Assurance
Certifications | UL Listed, CE Certified, IP54 Waterproof Tested, RoHS Compliant |
Warranty | 2-Year Limited Warranty for Main Body, 1-Year Warranty for Electronic Components |
Quality Control | 100% Full Inspection Before Shipment, Including Lock Body Operation Test, Electronic Function Test, Waterproof Test, and Appearance Inspection |
After-Sales Service | Professional Technical Support Team, 7*24 Hours Online Consultation, Free Replacement for Defective Products Within Warranty Period |
7.Frequently Asked Questions (FAQ)
Q1 | What is the difference between E3042 and other hotel locks? |
A1 | E3042 features 304 stainless steel construction, IP54 waterproof, dual unlocking modes (Bluetooth + RFID), full compatibility with ORBITA hotel management system, and extreme temperature adaptability, making it suitable for all types of hotel environments worldwide. |
Q2 | How long does the battery last? |
A2 | With 4 AA alkaline batteries, the lock can last up to 12 months under normal use (10-15 unlocks per day). The low voltage alarm will remind you to replace the battery when the voltage is below 4.8V. |
Q3 | Is it easy to install? |
A3 | Yes, the lock is designed for standard hotel door installation, fits 32-70mm door thickness, and comes with a detailed user manual and installation drawing. Professional installation is recommended for commercial projects to ensure optimal performance. |
Q4 | Can it be integrated with our existing hotel management system? |
A4 | Yes, the E3042 is fully compatible with the ORBITA Hotel Lock Management System, and can also be integrated with most mainstream hotel PMS systems through SDK development. |
Q5 | What is the minimum order quantity? |
A5 | We support sample orders for 1-10 pieces, and bulk orders start from 50 pieces. Customized logo and packaging are available for bulk orders. |
