E3041
ORBITA
| Color: | |
|---|---|
| SKU: | |
| Availability: | |
| Quantity: | |
1.Brief Introduction

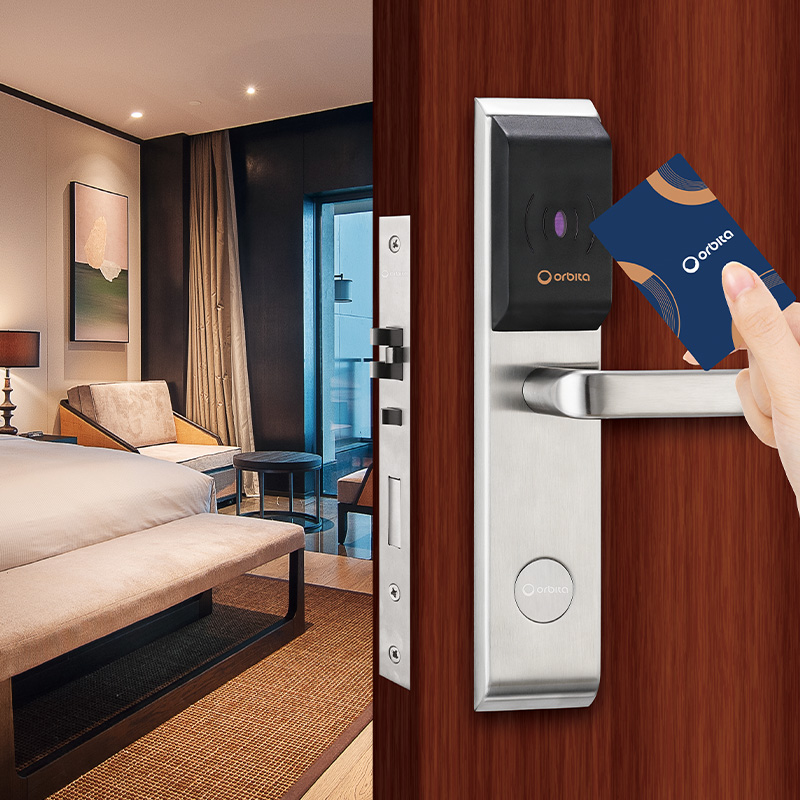

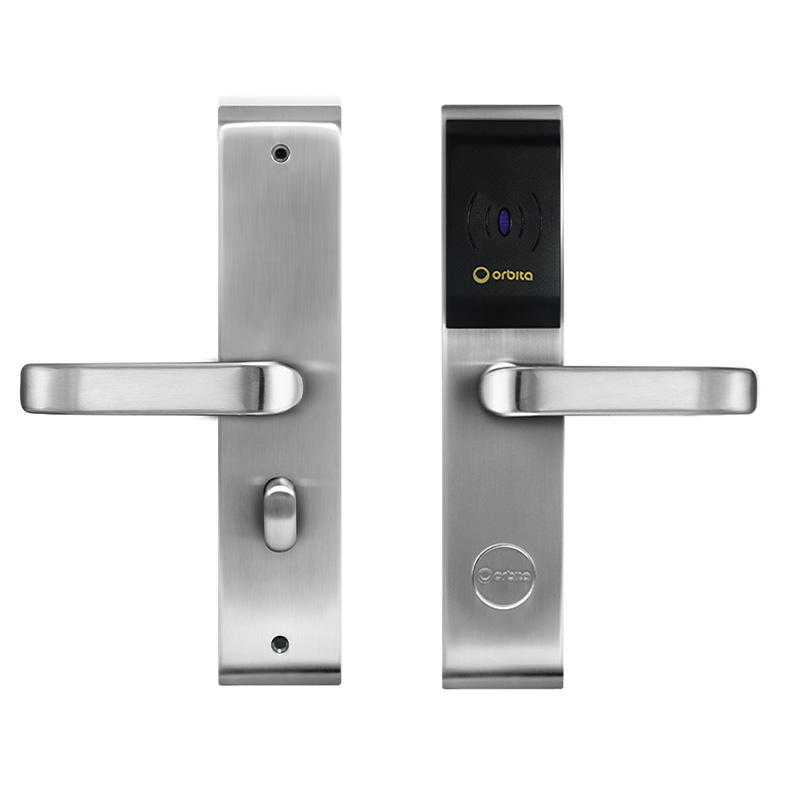

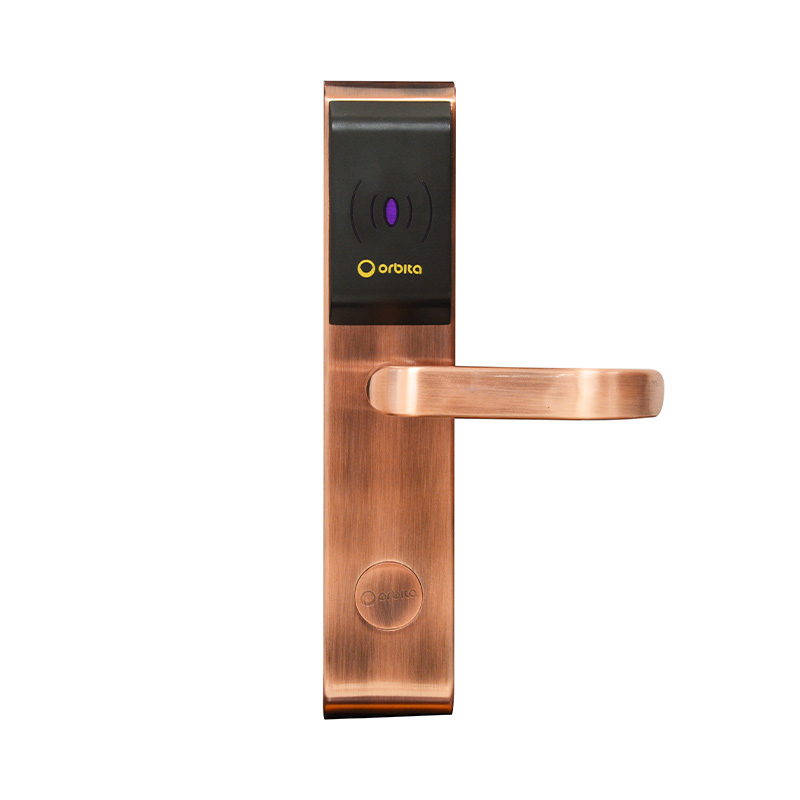

ORBITA E3041 Hotel Lock made of grade 304 stainless steel with a PVC card reader cover, with strong resistance to impact, corrosion and abrasion. The door lock PCB is waterproof with stable and reliable quality.
E3041 Door Lock can support other types of hotel management software, Fidelio/Opera, and Orbita wireless portable programmer for door lock setting, data collection and download functions. Certified by European CE and U.S. UL-10C, our products adopt the American standard 5-point tongue lock body with an anti-shim plunger design and an abnormal latch bolt alert for double security, stability and reliability. Functions such as door left open warning, low battery voltage warning, channel function and all-in-one function are available.
2. 6 Core Advantages of E3041 Hotel Door Lock
Advantage 1 : Superior Durability: 304 Stainless Steel Construction, Strong Impact, Corrosion & Wear Resistance.
Advantage 2: All-Weather Adaptability: IP54 Waterproof, Moisture Proof & Fire Retardant, Operates in -20℃~60℃ Extreme Temperatures.
Advantage 3: Smart & Flexible Unlocking: Supports Bluetooth Mobile Key + Mifare 1 RFID Card, Dual Unlocking Modes for Hotel Management & Guest Convenience.
Advantage 4: Reliable Power Supply: DC6V Wired Power or 4 AA Alkaline Batteries, Built-in Low Voltage Alarm (<4.8V) to Prevent Lockouts.
Advantage 5: Comprehensive Security Management: Stores up to 1680 Unlocking Records, Full Traceability for Hotel Security Audits.
Advantage 6: Wide Compatibility: Fits 32-70mm Standard Door Thickness, Compatible with ORBITA Hotel Lock Management System, Easy to Install & Maintain.
3. Complete Technical Specifications
Product Model | E3041 |
Main Material | 304 Stainless Steel, Moisture Proof, Fire Retardant |
Operating Voltage | DC6V or 4 AA Alkaline Batteries |
Low Voltage Alarm | ＜4.8V |
Operating Temperature | -20℃~60℃ |
Unlocking Record Capacity | 1680 PCS |
Applicable Door Thickness | 32-70mm |
Compatible Keycard | Mifare 1 Card |
Product Size | L290mm x W60mm x H15mm |
Mortise Model | M10D Standard Hotel Lock Mortise |
Certifications | UL Listed, CE Certified, IP54 Waterproof |

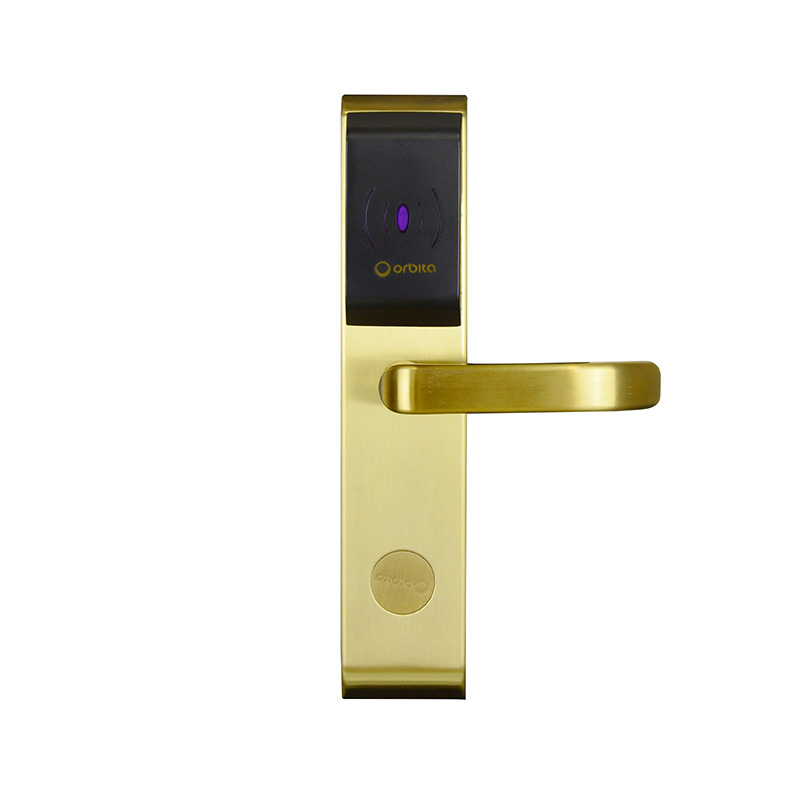

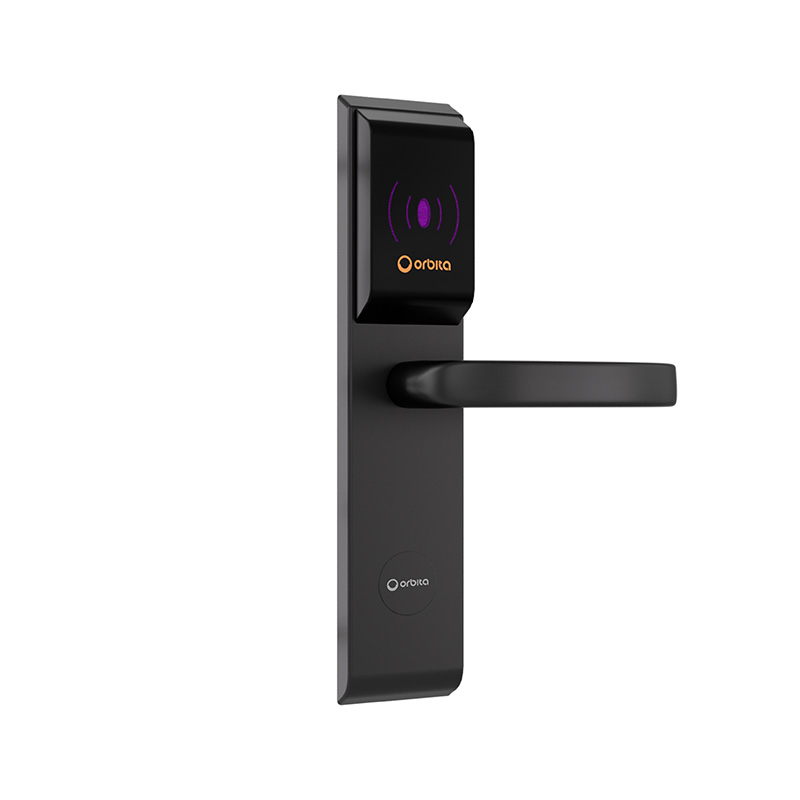

Available Finishes | Stainless Steel (SS), Gold, Black |

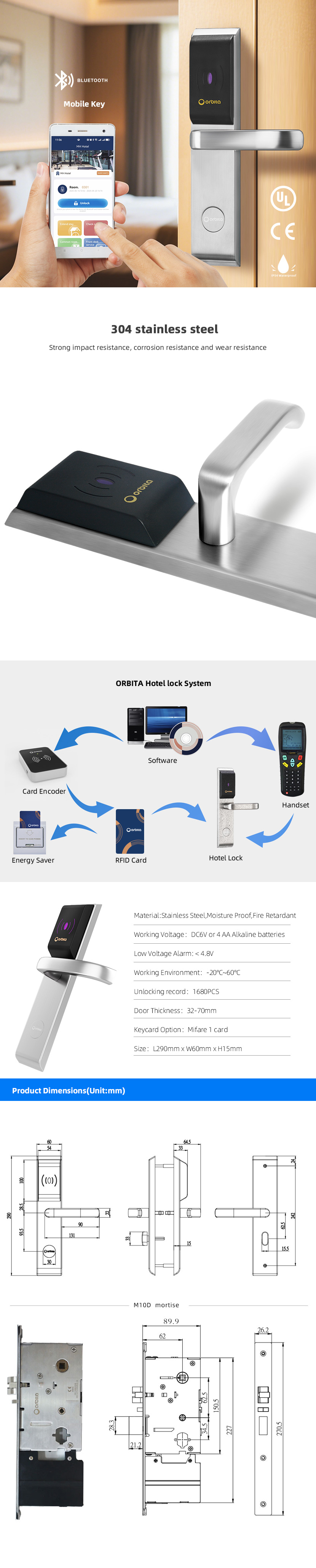

4.Product Dimensions & Installation Guide
Front Panel Dimensions | L290mm x W60mm x H15mm (L11.42" x W2.36" x H0.59") |
Mortise Dimensions | M10D Standard Hotel Lock Mortise, Detailed Dimensions Refer to Installation Drawing |
Applicable Door Type | Wooden Door, Metal Door, Fireproof Door, Suitable for Hotel Guest Rooms, Apartments, Offices |
Installation Notes | 1. Standard 22mm/24mm Door Hole Preparation Required; 2. Mortise Installation First, Then Front Panel Fixing; 3. Power Connection Test Before Final Installation; 4. Professional Installation Recommended for Commercial Projects |
5. Packaging & Shipping Information
Outer Carton Size | L360*D360*H365mm (L36cm*D36cm*H36.5cm) |
Quantity Per Carton | 6 PCS/Carton |
Packing Method | Each Lock is Individually Packaged in a Color Box, with Accessory Bag, User Manual, and Warranty Card Included; 6 Color Boxes Packed in One Master Carton |
Shipping Weight | Net Weight: 2.5KG/PC; Gross Weight: 18KG/Carton |
Lead Time | Sample Order: 3-5 Working Days; Bulk Order: 15-20 Working Days |
6.Trust & Quality Assurance
Certifications | UL Listed, CE Certified, IP54 Waterproof Tested, RoHS Compliant |
Warranty | 2-Year Limited Warranty for Main Body, 1-Year Warranty for Electronic Components |
Quality Control | 100% Full Inspection Before Shipment, Including Lock Body Operation Test, Electronic Function Test, Waterproof Test, and Appearance Inspection |
After-Sales Service | Professional Technical Support Team, 7*24 Hours Online Consultation, Free Replacement for Defective Products Within Warranty Period |
7.Frequently Asked Questions (FAQ)
Q1 | What is the difference between E3041 and other hotel locks? |
A1 | E3041 features 304 stainless steel construction, IP54 waterproof, dual unlocking modes (Bluetooth + RFID), full compatibility with ORBITA hotel management system, and extreme temperature adaptability, making it suitable for all types of hotel environments worldwide. |
Q2 | How long does the battery last? |
A2 | With 4 AA alkaline batteries, the lock can last up to 12 months under normal use (10-15 unlocks per day). The low voltage alarm will remind you to replace the battery when the voltage is below 4.8V. |
Q3 | Is it easy to install? |
A3 | Yes, the lock is designed for standard hotel door installation, fits 32-70mm door thickness, and comes with a detailed user manual and installation drawing. Professional installation is recommended for commercial projects to ensure optimal performance. |
Q4 | Can it be integrated with our existing hotel management system? |
A4 | Yes, the E3041 is fully compatible with the ORBITA Hotel Lock Management System, and can also be integrated with most mainstream hotel PMS systems through SDK development. |
Q5 | What is the minimum order quantity? |
A5 | We support sample orders for 1-10 pieces, and bulk orders start from 50 pieces. Customized logo and packaging are available for bulk orders. |
